产品详情
| 序号 |
长盛链号 |
节距 |
滚子直径 |
内链节内宽 |
销轴直径 |
内链板高度 |
套筒内径 |
抗拉强度 |

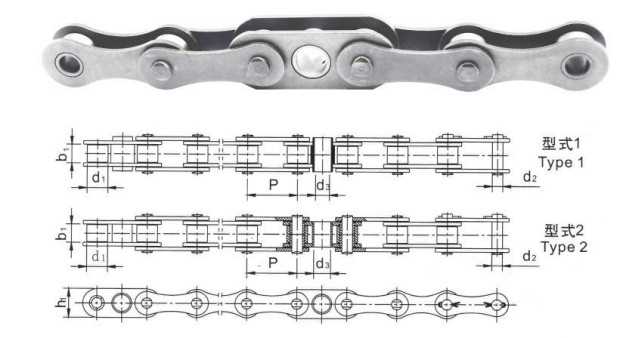

| p |
d1(max) |
b1(min) |
d2(max) |
h1(max) |
d3(min) |
Q(min) |
| mm |
mm |
mm |
mm |
mm |
mm |
N/kgf |
|
Y899HC |
67.733 |
28.00 |
25.215 |
14.29 |
46 |
23 |
88260/9000 |
|
Y899HD |
67.733 |
28.00 |
25.215 |
14.29 |
46 |
23 |
147100/15000 |
|
T67 |
67.733 |
28.00 |
25.40 |
14.27 |
46 |
21 |
88260/9000 |
|
T67G |
67.733 |
28.00 |
25.40 |
14.27 |
46 |
21 |
147100/15000 |
|
F-9 |
67.60 |
28.00 |
25.40 |
14.29 |
- |
21 |
88260/9000 |
|
F-14 |
67.60 |
28.00 |
25.40 |
14.29 |
- |
21 |
147100/14000 |
|
g-9 |
66.60 |
25.40 |
20.6 |
9.54 |
- |
21 |
147100/14000 |
|
768 |
68.40 |
32.00 |
20.70 |
14.29 |
45.40 |
23.50 |
127500/13000 |
|
T68A |
68.40 |
28.00 |
20.70 |
12.70 |
44.90 |
21.00 |
98000/10000 |
|
1-20 |
81.28 |
39.69 |
38.10 |
19.84 |
- |
24.00 |
196000/20000 |
|
1-28 |
81.28 |
39.69 |
38.10 |
19.84 |
- |
24.00 |
274400/28000 |
|
g-12.7 |
81.28 |
31.75 |
31.75 |
12.70 |
- |
20.828 |
124460/12700 |
