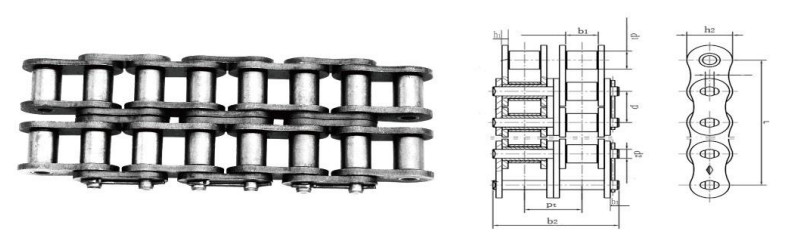

| 序号 | 长盛链号 | GB链号 ISO链号 |
节距 | 滚子直径 | 内链节内宽 | 销轴直径 | 链板厚度 | 链板高度 | 排距 | 销轴长度 | 拉伸载荷 | 每米重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| p | d1(max) | b1(max) | d2(max) | h1 | h2 | pt | b2 | min | q | |||
| mm | mm | mm | mm | mm | mm | mm | mm | KN号 | kg/m号 | |||
| 140GA-3 | 140GA-3 | 28S-3 | 44.45 | 25.40 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 156.10 | 510.81 | 23.25 |
| 140GA-4 | 140GA-4 | 28S-4 | 44.45 | 25.40 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 205.00 | 681.08 | 30.90 |
| 140GA-5 | 140GA-5 | 28S-5 | 44.45 | 25.40 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 253.90 | 851.35 | 38.55 |
| 140GA-6 | 140GA-6 | 28S-6 | 44.45 | 25.40 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 302.70 | 1021.62 | 46.20 |
| 140GA-8 | 140GA-8 | 28S-8 | 44.45 | 25.40 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 400.50 | 1362.16 | 61.50 |
| 140GA-10 | 140GA-10 | 28S-10 | 44.45 | 25.40 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 498.20 | 1702.70 | 76.81 |
| 160GA-1 | 160GA-1 | 32S-1 | 50.80 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | - | 69.00 | 222.40 | 10.47 |
| 160GA-2 | 160GA-2 | 32S-2 | 50.80 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 127.50 | 444.80 | 20.65 |
| 160GA-3 | 160GA-3 | 32S-3 | 50.80 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 186.10 | 667.20 | 30.82 |
| 160GA-4 | 160GA-4 | 32S-4 | 50.80 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 244.60 | 889.60 | 40.99 |
| 160GA-5 | 160GA-5 | 32S-5 | 50.80 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 303.20 | 111.20 | 51.60 |
| 160GA-6 | 160GA-6 | 32S-6 | 50.80 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 361.70 | 1334.40 | 61.33 |
| 160GA-8 | 160GA-8 | 32S-8 | 50.80 | 28.57 | 31.55 | 14.29 | 6.35 | 48.26 | 58.55 | 478.80 | 1779.20 | 81.68 |
| 180GA-1 | 180GA-1 | 36S-1 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | - | 77.70 | 280.20 | 13.96 |
| 180GA-2 | 180GA-2 | 36S-2 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | 65.84 | 143.60 | 560.50 | 27.88 |
| 180GA-3 | 180GA-3 | 36S-3 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | 65.84 | 209.40 | 840.70 | 41.62 |
| 180GA-4 | 180GA-4 | 36S-4 | 57.15 | 35.71 | 35.48 | 17.46 | 7.14 | 54.31 | 65.84 | 275.30 | 1121.00 | 55.36 |
| 200GA-1 | 200GA-1 | 40S-1 | 63.50 | 39.67 | 37.85 | 19.85 | 7.92 | 60.33 | - | 84.50 | 347.50 | 17.35 |
| 200GA-2 | 200GA-2 | 40S-2 | 63.50 | 39.67 | 37.85 | 19.85 | 7.92 | 60.33 | 71.55 | 156.00 | 695.00 | 34.14 |
| 200GA-3 | 200GA-3 | 40S-3 | 63.50 | 39.67 | 37.85 | 19.85 | 7.92 | 60.33 | 71.55 | 299.10 | 1390.00 | 67.73 |
| 200GA-4 | 200GA-4 | 40S-1 | 63.50 | 39.67 | 37.85 | 19.85 | 7.92 | 60.33 | 71.55 | 299.10 | 1390.00 | 67.73 |
| 240GA-1 | 240GA-1 | 48S-1 | 76.20 | 47.62 | 47.35 | 23.81 | 9.52 | 72.39 | - | 102.20 | 500.40 | 25.20 |
| 240GA-2 | 240GA-2 | 48S-2 | 76.20 | 47.62 | 47.35 | 23.81 | 9.52 | 72.39 | 87.83 | 190.10 | 1000.80 | 49.81 |
| 240GA-3 | 240GA-3 | 48S-3 | 76.20 | 47.62 | 47.35 | 23.81 | 9.52 | 72.39 | 87.83 | 277.90 | 1501.20 | 74.43 |
| 240GA-4 | 240GA-4 | 48S-1 | 76.20 | 47.62 | 47.35 | 23.81 | 9.52 | 72.39 | 87.83 | 365.70 | 2001.60 | 99.04 |
| 80GA-1 | 80GA-1 | 16S-1 | 25.40 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | - | 36.20 | 55.60 | 2.84 |
| 80GA-2 | 80GA-2 | 16S-2 | 25.40 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 65.50 | 111.20 | 5.54 |
| 80GA-3 | 80GA-3 | 16S-3 | 25.40 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 124.10 | 222.40 | 10.93 |
| 80GA-4 | 80GA-4 | 16S-4 | 25.40 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 124.10 | 222.40 | 10.93 |
| 80GA-5 | 80GA-5 | 16S-5 | 25.40 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 153.40 | 278.00 | 13.63 |
| 80GA-6 | 80GA-6 | 16S-6 | 25.40 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 182.60 | 333.60 | 16.32 |
| 80GA-8 | 80GA-8 | 16S-8 | 25.40 | 15.88 | 15.75 | 7.94 | 3.18 | 24.13 | 29.29 | 241.20 | 444.80 | 21.72 |
| 100GA-1 | 100GA-1 | 20S-1 | 31.75 | 19.50 | 18.90 | 9.54 | 3.96 | 30.18 | - | 43.60 | 86.74 | 4.25 |
| 100GA-2 | 100GA-2 | 20S-2 | 31.75 | 19.50 | 18.90 | 9.54 | 3.96 | 30.18 | 35.76 | 79.30 | 173.48 | 8.31 |
| 100GA-3 | 100GA-3 | 20S-3 | 31.75 | 19.50 | 18.90 | 9.54 | 3.96 | 30.18 | 35.76 | 115.10 | 260.22 | 12.36 |
| 100GA-4 | 100GA-4 | 20S-4 | 31.75 | 19.50 | 18.90 | 9.54 | 3.96 | 30.18 | 35.76 | 150.80 | 346.96 | 16.41 |
| 100GA-5 | 100GA-5 | 20S-5 | 31.75 | 19.50 | 18.90 | 9.54 | 3.96 | 30.18 | 35.76 | 186.60 | 433.70 | 20.47 |
| 100GA-6 | 100GA-6 | 20S-6 | 31.75 | 19.50 | 18.90 | 9.54 | 3.96 | 30.18 | 35.76 | 222.40 | 520.44 | 24.52 |
| 100GA-8 | 100GA-8 | 20S-8 | 31.75 | 19.50 | 18.90 | 9.54 | 3.96 | 30.18 | 35.76 | 293.90 | 693.92 | 32.63 |
| 120GA-1 | 120GA-1 | 24S-1 | 38.10 | 22.22 | 25.23 | 11.11 | 4.75 | 36.20 | - | 54.10 | 125.10 | 6.81 |
| 120GA-2 | 120GA-2 | 24S-2 | 38.10 | 22.22 | 25.23 | 11.11 | 4.75 | 36.20 | 45.44 | 99.60 | 250.20 | 12.12 |
| 120GA-3 | 120GA-3 | 24S-3 | 38.10 | 22.22 | 25.23 | 11.11 | 4.75 | 36.20 | 45.44 | 145.50 | 375.30 | 18.06 |
| 120GA-4 | 120GA-4 | 24S-4 | 38.10 | 22.22 | 25.23 | 11.11 | 4.75 | 36.20 | 45.44 | 190.00 | 500.40 | 23.99 |
| 120GA-5 | 120GA-5 | 24S-5 | 38.10 | 22.22 | 25.23 | 11.11 | 4.75 | 36.20 | 45.44 | 235.90 | 625.90 | 29.23 |
| 120GA-6 | 120GA-6 | 24S-6 | 38.10 | 22.22 | 25.23 | 11.11 | 4.75 | 36.20 | 45.44 | 281.30 | 750.60 | 35.87 |
| 120GA-7 | 120GA-7 | 24S-7 | 38.10 | 22.22 | 25.23 | 11.11 | 4.75 | 36.20 | 45.44 | 326.70 | 875.00 | 41.82 |
| 120GA-8 | 120GA-8 | 24S-8 | 38.10 | 22.22 | 25.23 | 11.11 | 4.75 | 36.20 | 45.44 | 372.20 | 1000.80 | 17.75 |
| 120GA-10 | 120GA-10 | 24S-10 | 38.10 | 22.22 | 25.23 | 11.11 | 4.75 | 36.20 | 45.44 | 463.10 | 1251.00 | 59.63 |
| 140GA-1 | 140GA-1 | 28S-1 | 44.45 | 25.40 | 25.23 | 12.71 | 5.56 | 42.24 | - | 58.40 | 170.27 | 7.91 |
| 140GA-2 | 140GA-2 | 28S-2 | 44.45 | 25.40 | 25.23 | 12.71 | 5.56 | 42.24 | 48.87 | 107.20 | 340.54 | 15.60 |
