产品详情

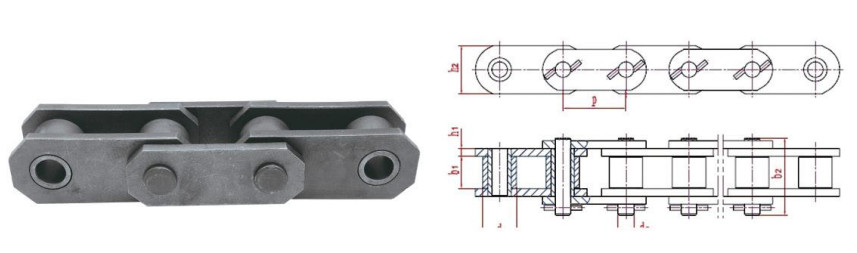

| 序号 |
长盛序号 |
节距 |
滚子直径 |
销轴直径 |
内链节内宽 |
链板厚度 |
链板高度 |
销轴长度 |
拉伸载荷 |
每米重量 |
| p |
d1 |
b2 |
b1 |
h1 |
h2 |
b2 |
min |
q |
| mm |
mm |
mm |
mm |
mm |
mm |
mm |
KN号 |
kg/m号 |
|
S77.90 |
77.90 |
41.28 |
19.08 |
39.60 |
9.70 |
60.00 |
95.50 |
378.00 |
18.94 |
|
S88.90 |
88.90 |
44.45 |
23.81 |
38.10 |
12.70 |
63.50 |
107.00 |
516.00 |
24.40 |
|
S103 |
103.45 |
45.24 |
27.97 |
49.30 |
14.10 |
79.20 |
125.20 |
700.00 |
39.03 |
|
S114 |
114.30 |
63.50 |
31.78 |
52.30 |
14.10 |
79.20 |
135.90 |
900.00 |
43.46 |
|
S127 |
127.00 |
66.68 |
33.34 |
55.55 |
15.88 |
88.90 |
148.00 |
934.00 |
45.42 |
|
S127G |
127.00 |
63.50 |
34.93 |
71.43 |
15.88 |
88.90 |
165.00 |
1179.0 |
50.31 |
|
S152 |
152.40 |
76.20 |
38.13 |
76.20 |
20.00 |
128.00 |
186.00 |
2167.0 |
84.56 |
|
S177.80 |
177.80 |
88.90 |
48.48 |
82.60 |
22.20 |
133.40 |
205.10 |
2068.0 |
95.00 |
